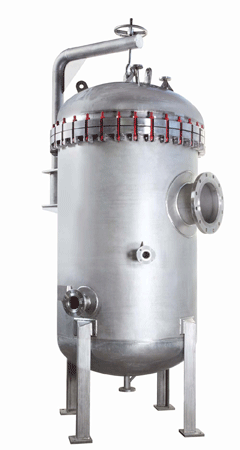

Filter Concept Pvt. Ltd. is one of the leading cartridge filter Housings exporters. Cartridge filter housing diameters can accommodate around 1 to 500 Filter cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of Tube sheet, filter housing, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Flow Rate

Capacity: Up to 2000 m3 /hr & more

Operation :

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.

» Permanently piped housing are opened without special tools and without disturbing the piping.
» Low pressure drop.
» Zero hold up design.
» Machined cover gasket groove provide positive O-Ring sealing.
» In-line inlet and outlet high flow rates.
» Positive sealing arrangement to avoid bypassing.
» Accommodates 10", 20", 30", 40", 50” & 60” long filter cartridges.
» End connections for ¾" to 24" pipe.
» V posts or threaded center posts.
» Quick opening tri clovers design.
» Flow rate up to 2000 m3/hr & More.
» Customized design available.
» Filter Cartridge Housings are permanently piped.
» ASME code stamp available.
» Duplex / Triplex / Jacketed cartridge filter unit designs are available.
» Filter Cartridge Housing Technical Specifications.
» Our Filter cartridge housing Flow Rate Capacity Up to 2000 m3 /hr & more.

Material Of Construction [MOC]

Stainless Steel 316L, Stainless Steel 316, Stainless Steel 304, Super Duplex [Grade: 2507], Duplex Stainless Steel 2205, CS (All grade), Mild Steel, Alloy metals, Polypropylene, Lead lining on Any Metal, RUBBER LINING on Any Metal, teflon lining on Any Metal, teflon coating on any metal.

Gasket and "O" Ring Material:

Neoprene, Nitrile, Silicone, Viton, Buna N, EPDM, PTFE, Spiral Wound & CAF.

End Connections

NPT / BSP Threaded, Flanged Table E / Table F, ANSI B 16.5 Flanged, DIN Standard, Tri Clover Adaptors, SMS /Dairy End Connection.

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters. Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

» For water treatment.

» For coolants.

» For Paints & inks.

» For food & beverages.

» For diary.

» For dyes & intermediates.

» For RO pre filtration.

» For processing Chemicals.
