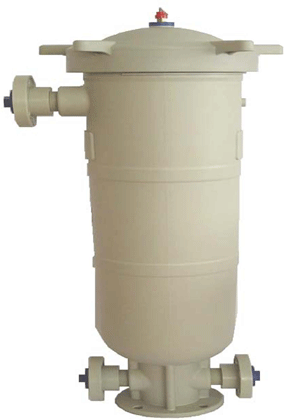

PLASTIC SIDE LINER FILTER HOUSING

Filter Concept Pvt. Ltd. is one of the leading Plastic bag filter housing exporters. Plastic Bag Housing is made of 100% pure German made Polypropylene resin, by integrated one-piece injection molding technologies, featuring excellent resistance to pressure, corrosion and ultraviolet light attack. It is designed to use industrial standard Size two filter bags (Ø 7” X 32”long ); Filter Housing has broad applications, and is ideal for high flow, corrosive and outdoor applications.

» Made by integrate one-piece injection molding. High overall product integrity and strength.

» UV inhibitor plastic formulation, ideal for extended outdoor applications

» Fiber glass reinforced structure for boosted pressure resistance

» Use industrial standard Size 2 filter bag. User friendly

» Filter bag seal: use patented bypass free SDS pressure seal ring, 100% bypass free guaranteed

» Effective top mounting lipped high pressure gasket

» Only one gasket seals the entire housing

» Inlet/outlet Connection: 2.0 BSP

» Inlet/outlet Configuration: Side-in, side-out, offline dual option

» Seal Gasket Materials: Buna-N & Viton

» Standard Package: Buna-N gasket, basket, vent valve, plastic bag holder

» Options: Polypropylene flange, plastic pressure gauge

» Max. clean water flow rate : 45 m³/Hr

» Filter bag surface area 0.50 m²

» Vessel volume : 32 liters

» Operating pressure : 0.8 MPa

» Max. pressure allowed : 1.0 MPa

» Operating temperature : Max. 60ºC

» Qty. & size of filter used : 1EA, # 2 filter bag

We have wide expertise and knowledge in the manufacture and export of world-class filter housings like plastic side liner bag filter housing Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

» Corrosive liquid processing

» Wastewater treatment

» RO system pre-treatment

» Desalination

» Fishery & hatchery

» Electro plating

» Electronics & semiconductor
