PLEATED DUST COLLECTION BAG

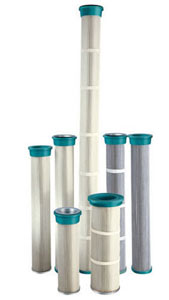

Pleated Dust Collection Bags

Filter Concept Pvt. Ltd. is one of the leading Pleated Dust Collection Bags exporters. Pleated dust collection bags are now widely used in the field of dust collection system. These are made up of 100 % Spun Bonded polyester media with different coatings on it, as per requirement of applications.This spun bonded media are pleated in different pleated depths & heights to accommodate desired filtration area. Spun bonded filter media offers surface filtration, due to which pleated bags offer very high throughput & lower pressure drop across the filter compared to any conventional tube type filter bags. Pleated configuration offers almost 3 – 4 times higher filtration area compared to conventional bags.

Filtration Area

0.96 m2 to 5.5 m2

Construction :

Pleated spun bonded polyester filter media is placed in a cylindrical configuration with support cage of Galvanised / stainless steel / Polypropylene & encapsulated with EPDM / Natural rubber / Polyurethane or metal end caps to form a pleated dust collection bag. Longitudinal joints of pleated bags are ultrasonically fused for leak proof & very stable design. The end caps are configured to mount as clean side or dirt side fitment. In case of metal caps these bags are supported with soft sponge rubber or snap band cuff sealing to ensure positive sealing of filter while fitment.

Filtration Media

»  Spun Bonded Polyester MediaNew

»  Pleatable PPS MediaNew

»  Pleatable Nomex MediaNew

Download Catalogue

» Filter area 3 to 4 times Larger than traditional filter bag
» Open Pleat Spacing
» Low consumption of compressed air (for cleaning)
» High efficiency due to surface filtration
» Reduction in downtime & maintenance
» Easy to install & remove
» Top and Bottom in EPDM, Natural Rubber,polyurethane or Metal end caps
» Leak proof design
» Very stable; do not break or fall through sheet
» Cages & venture are integral part of bags,hence no cages or venture required

Area weight of filter media

» 170 gms/m2

» 200 gms/m2

» 260 gms/m2

Coating

» PTFE coating for oil & moisture removal

» Aluminum coating for antistatic application

» Stainless steel coating for antistatic application

» Fire retardant coating

» PTFE lamination for very stick dust

Sizes

» Ø 160 mm x 500 mm Long

» Ø 160 mm x 1000 mm Long

» Ø 160 mm x 1400 mm Long

» Ø 160 mm x 2000 mm Long

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters. Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

» Pharmaceuticals

» Steel & Power

» Powder coating

» Shot Blasting

» Cement

» Chemicals

» Metals & Minerals

» Paints & Pigments

» Pneumatic Conveying

» Spray Dryer

Pleated Dust Collection Bags
Nomex bags
PU Moulded bags
Pleated Dust Collection Bags
Nomex bags
PU Moulded bags
Pleated Dust Collection Bags
Nomex bags
PU Moulded bags
Pleated Dust Collection Bags
Nomex bags
PU Moulded bags

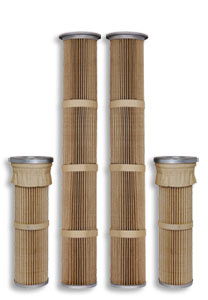

Nomex Media Bags

NOMEX MEDIA BAG

Pleated dust collection bags are now widely used in the field of dust collection system. These are made up of nomex media with different coatings on it, as per req. of applications operated at high temp. of 200°C

Enquiry

PU Moulded Bags

PU MOULDED BAG

Filter-Concept is keen to deliver highest level of quality product to their customer & with endevour to that FCPL has introduced polyurethane pleated bags to cater demanding application of air pollution control segment.

Enquiry

.
