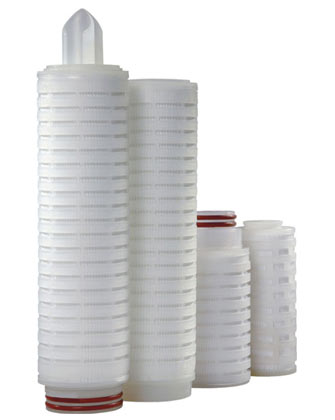

PP PLEATED CARTRIDGES

pp pleated cartridges

Filter Concept Pvt. Ltd. is one of the leading PP Pleated [Polypropylene Pleated Filter Cartridge] filter cartridges exporters. Polypropylene filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries.

Polypropylene pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micron ratings, high flow rates and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter creates a gradient density matrix, ranging from open on the outside to finer on the inside, thereby providing a filter with in filter, which considerably increases contamination holding capacity & throughputs.

All components used in the manufacturing process are biologically safe, chemically inert and meet FDA and other international quality requirements. Polypropylene offers an extremely broad chemical compatibility making it suitable for many applications.

Download Catalogue

» All polypropylene construction
» Absolute & nominal efficiency
» 0.1 to 40 Micron ratings
» Gradient density micron fiber media
» High surface area more than 0.5 m2 per 10" filter
» Robust outer cage
» Biologically safe
» Wide chemical compatibility
» No fiber migration
» Thermally welded construction
» FDA approved filters
» End connections to fit all standard housings

Sizes

10”, 20”,30”,40” Long

Micron Rating

0.1, 0.2, 0.45 , 1 , 5 , 10 , 20 Micron

Outside Diameter

69 mm

Inner Diameter

28 mm

Configuration

» Double Open Type (DOE Type)

» Code 7S (226 O' Ring Design / Bayonet)

» Code 7F (226 O' Ring Design / Flat)

» Code 3S (222 O' Ring Design / Bayonet)

» Code 3F (222 O' Ring Design / Flat)

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters & filter consumables Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

Fine Chemicals and Pharmaceuticals

» D.I. Water

» R.O.Pre filtration

» Biological Fluids

» Oral Drugs

» Ophthalmic Liquids

Photographic Film & Paper

» Anti-Halation Coatings

» Developer Chemicals

» Emulsions

» Gelatins

Beverages

» Wine

» Alcohols

» Fruit Juice

» Beer

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
.
